032590

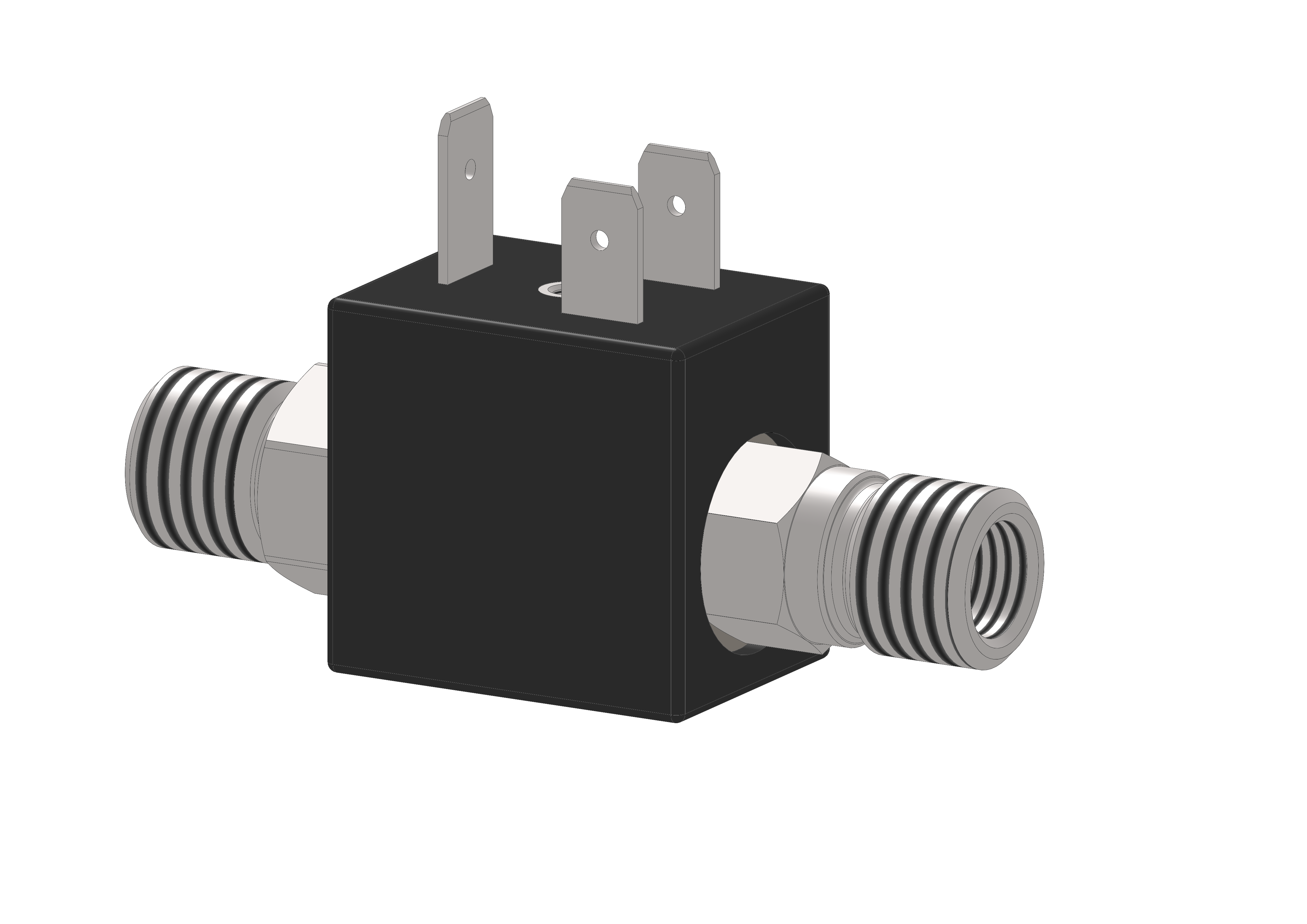

3913-6, dn 1, Stainless steel, 24VDC, Fluid Connection 311/290
| Nominal diameter | Type 6 - 1.0 mm |
|---|---|
| Switching function | 2/2-Way |
| Security positions | Normally closed |
| Kv value | Type 6 - 0.038 m³/h (Dn 1 mm) |
| Coil power | Type 6 - 10 W |
| Tensions d’alimentation | Alternating current - 24 V AC |
| Differential pressures | 0 - 90 Bar |
| Types de raccord d’entrée | Push-in - Type 290 |
| Fluid temperature | -20°C to +50°C |
| Electrical connector | Without connector |
| Coil type and protection | Square coils - Insulation class F |
| Gasket material | EPDM (NSF-51 certified) |
| Material of the valve | Material of inlet and outlet connections - Stainless steel |
